Electrical Engineering & Computer Science

Project 1: Minesweeper System Development

Course: EECS 581 Software Engineering II, Fall 2025
Due Date: 11:59 PM CDT, Friday, September 19, 2025

Overview

Develop Minesweeper, a single-player puzzle game. Players interact with a 10x10 grid, uncovering cells to reveal numbers indicating adjacent mines while avoiding detonation. Players can flag suspected mine locations.

Requirements

HINT: Game Setup

• Board Configuration
• Size: 10x10 grid
• Columns labeled A–J; rows numbered 1–10
• Mine Configuration
• Number of mines: User-specified, 10 to 20
• Randomly placed at game start
• First clicked cell (and optionally adjacent cells) guaranteed mine-free
• Initial State: All cells start covered, with no flags

Gameplay

• Players uncover a cell by selecting it (e.g., clicking)
• Uncovering a mine ends the game (loss)
• Uncovering a mine-free cell reveals a number (0–8) indicating adjacent mines
• Cells with zero adjacent mines trigger recursive uncovering of adjacent cells
• Players can toggle flags on covered cells to mark suspected mines

Mine Flagging

• Players place/remove flags on covered cells to indicate potential mines
• Flagged cells cannot be uncovered until unflagged
• Display remaining flag count (total mines minus placed flags)

Player Interface

• Display a 10x10 grid showing cell states: covered, flagged, or uncovered (number or empty for zero adjacent mines)
• Show remaining mine count (total mines minus flags)
• Provide a status indicator (e.g., “Playing,” “Game Over: Loss,” “Victory”)

Game Conclusion

• Loss: Triggered by uncovering a mine, revealing all mines
• Win: Achieved by uncovering all non-mine cells without detonating any mines

Submission Requirements

• Code Freeze: Freeze code on the master branch of the team’s GitHub repository by the due date. Compliance is based on the final commit timestamp
• Demo: Demonstrate project progress during the weekly GTA/team meeting using the master branch as of the code freeze
• Artifacts: Store all code and documentation in the team’s GitHub repository on the master branch
• Peer Reviews: Submit individual Team Peer Evaluation forms via Canvas by the due date

HINT: System Architecture

• Purpose: Describes the high-level structure to facilitate feature extensions by the Project 2 team
• Components:
  • Board Manager: Manages the 10x10 grid as a 2D array, tracking cell states (covered, flagged, uncovered, mine)
  • Game Logic: Handles gameplay rules, including mine placement, cell uncovering, recursive revealing, and win/loss detection
  • User Interface: Renders the grid, status indicators (e.g., mine count, game state), and user inputs (clicks for uncovering/flagging)
  • Input Handler: Processes user inputs (e.g., clicks, key presses) and communicates with Game Logic to update the Board
• Data Flow:
  • User input (click) → Input Handler validates and sends to Game Logic
  • Game Logic updates Board state (e.g., uncover cell, place flag)
  • Board state changes trigger UI updates (e.g., render number, flag, or mine)
• Key Data Structures:
  • 2D array (10x10) for grid: stores cell states (0 = covered, 1 = flagged, 2 = uncovered number, 3 = mine)
  • Game state object: tracks mine count, flags remaining, and win/loss status
• Assumptions:
  • Fixed 10x10 grid size
  • Mine count user-specified (10–20) at game start

Language and Platform

Teams choose the development environment and the programming language (e.g., CLI, HTML/CSS/JavaScript, Python, C, C++, Go).

Grading Criteria (100 Points)

1. Working Product Demonstration (40 Points)
   • Platform: Conducted on a device of your choice during the weekly GTA/team meeting
   • Evaluation:
     • Presence of all specified features
     • Withstands stress testing (penalties for crashes or memory leaks)
     • Intuitive interface, requiring no manual
2. System Documentation (40 Points)
   • Person-Hours Estimate (10 Points): Detail your methodology for estimated hours
   • Actual Person-Hours (10 Points): Day-by-day accounting of each member’s hours (excluding EECS 581 lectures)
   • System Architecture Overview (20 Points): High-level description and diagram of system components, data flow, and key data structures
3. Code Documentation and Comments (20 Points)
   • Prologue Comments: Include for each file
     • Function, class, module name and brief description
     • Inputs and outputs
     • External sources (e.g., generative AI, StackOverflow) with attribution
     • Author’s full name and creation date
   • In-Code Comments:
     • Comment major code blocks and/or individual lines to explain functionality
     • Indicate whether code is original, sourced, or combined
     • Ensure clarity for GTA and Project 2 team comprehension
4. Source Attribution
   • Clearly identify external code sources and rephrase comments distinctly
   • Failure to attribute sources constitutes academic misconduct (see the course syllabus)

Mandatory Peer Evaluation (-25 points if not completed)

Each team member must complete the peer evaluation: Act as a manager and divide a $10,000 bonus among team members (submit on Canvas).

Project Evaluation Rubric

1. Working Product Demonstration (40 Points)

• Exceeds Expectations (90–100%)
  All specified features are present (board configuration, gameplay, mine flagging, player interface); system is stable under stress testing; user interface is intuitive without requiring a manual; code is highly modular and extensible.
• Meets Expectations (80–89%)
  Most specified features are present (at least three of: board configuration, gameplay, mine flagging, player interface); system is mostly stable but may have minor issues under stress testing; user interface is mostly intuitive but may require minimal guidance.
• Unsatisfactory (0–79%)
  Two or fewer specified features are fully implemented; system crashes or has significant memory leaks; user interface is confusing or requires extensive guidance.

2. Estimate of Person-Hours (10 Points)

• Exceeds Expectations (90–100%)
  Detailed methodology for estimating person-hours is complete, clear, and well-justified, enabling easy understanding by the GTA and Project 2 team.
• Meets Expectations (80–89%)
  Methodology for estimating person-hours is provided but lacks some clarity or detail, making it slightly difficult to understand.
• Unsatisfactory (0–79%)
  No estimate provided (0 points); or estimate provided without any methodology or explanation (60 points).

3. Actual Accounting of Person-Hours (10 Points)

• Exceeds Expectations (90–100%)
  Complete day-by-day accounting from each team member, detailing hours spent on coding, testing, meetings, and documentation (excluding EECS 581 lectures), with clear and accurate records.
• Meets Expectations (80–89%)
  Incomplete day-by-day accounting from team members, or includes non-project time (e.g., EECS 581 lectures), or minor inaccuracies in reporting.
• Unsatisfactory (0–79%)
  No accounting provided, or accounting is fabricated or significantly incomplete.

4. System Documentation (20 Points)

• Exceeds Expectations (90–100%)
  Comprehensive system architecture overview and documentation in the GitHub repository’s master branch, including detailed descriptions and diagrams of components, data flow, and key data structures, enabling the Project 2 team to easily extend the system.
• Meets Expectations (80–89%)
  System documentation is mostly complete but missing minor details or lacks some clarity in describing components, data flow, or data structures, requiring slight effort from the Project 2 team.
• Unsatisfactory (0–79%)
  System documentation is missing significant details, lacks diagrams, or is insufficient for the Project 2 team to understand and extend the system.

5. Code Documentation and Comments (20 Points)

• Exceeds Expectations (90–100%)
  Prologue comments in each file include function/class/module name, description, inputs/outputs, external sources with attribution, author’s name, and creation date; major code blocks and individual lines are clearly commented to explain functionality, with clear attribution for original, sourced, or combined code.
• Meets Expectations (80–89%)
  Prologue comments are present but missing some required elements (e.g., inputs/outputs or attribution); some major code blocks or individual lines lack comments, or attribution is incomplete.
• Unsatisfactory (0–79%)
  Prologue comments are missing entirely, or major code blocks and lines have minimal or no comments, or external sources are not attributed, risking academic misconduct.

---

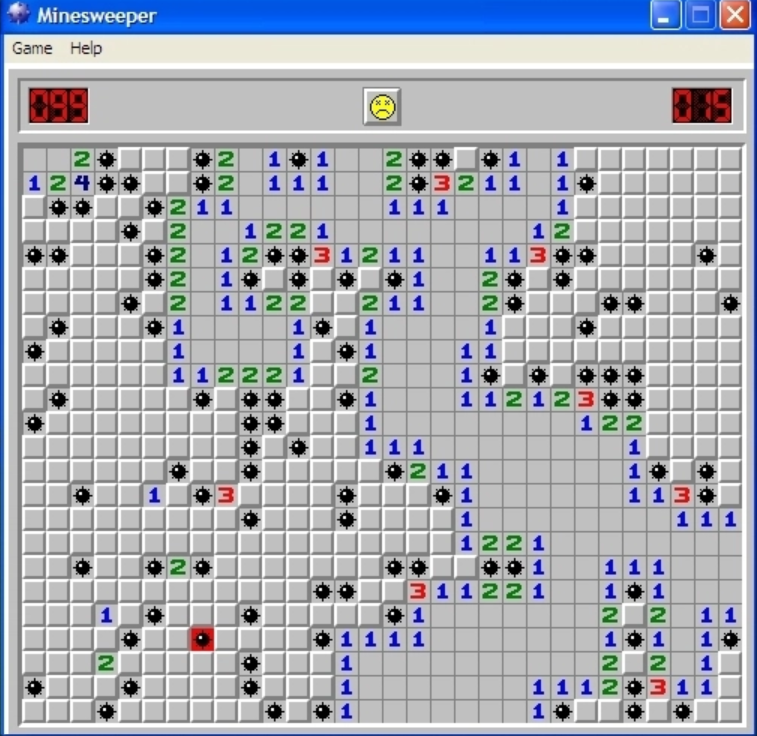

The Microsoft Minesweeper: A Nostalgic Legacy
